Azobe railing

— 2 minute read

Replaced the temporary pine railing that was starting to rot after 6 years.​

Azobe

We had some rough cut azobe posts left over from our swimming pond construction and I thought it'd be a good idea to use them to replace the temporary stair railing that I made in pine and was starting to rot.

Plywood Crate

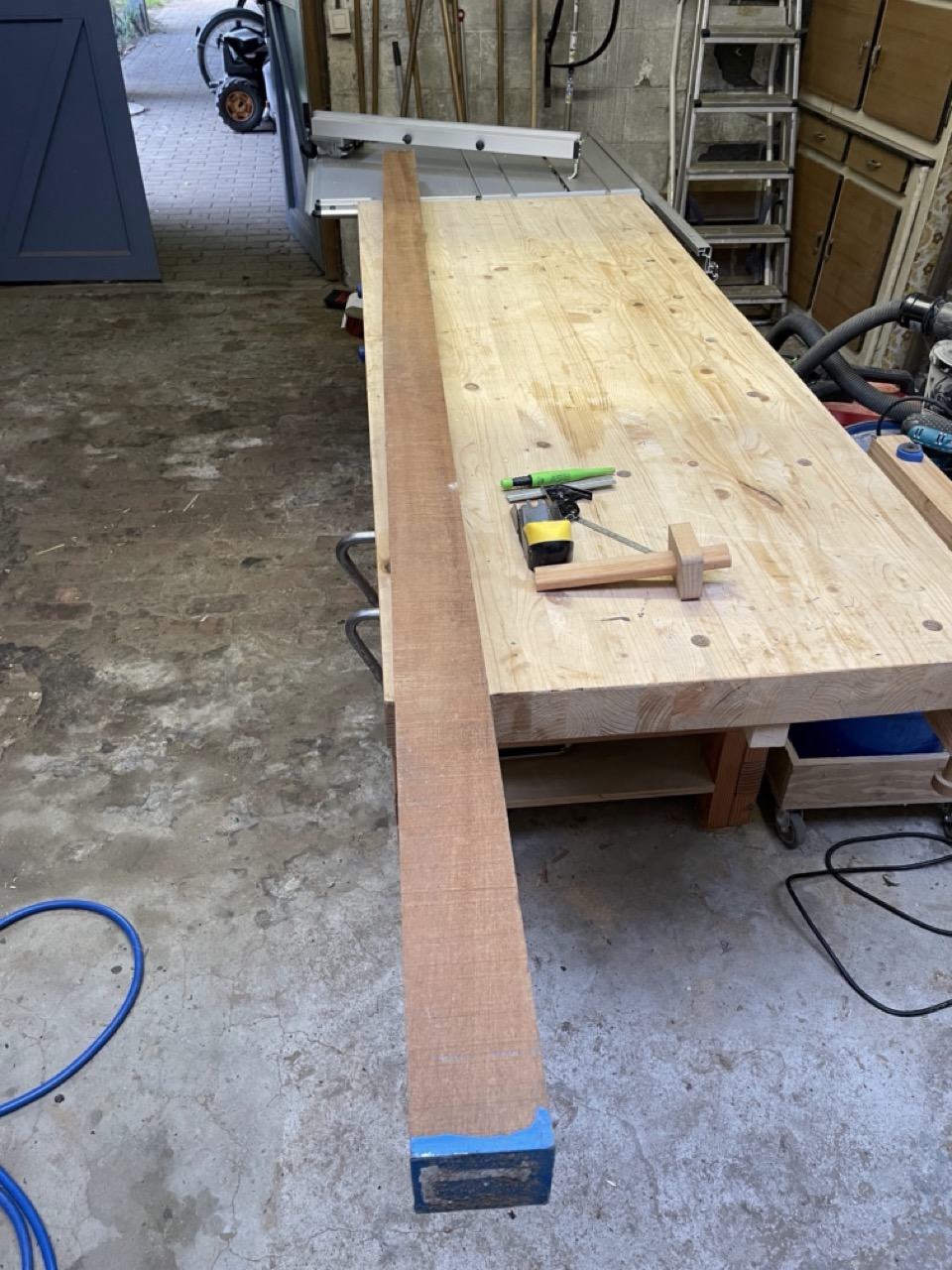

Rough cut and not so very straight azobe post.

Plywood Crate

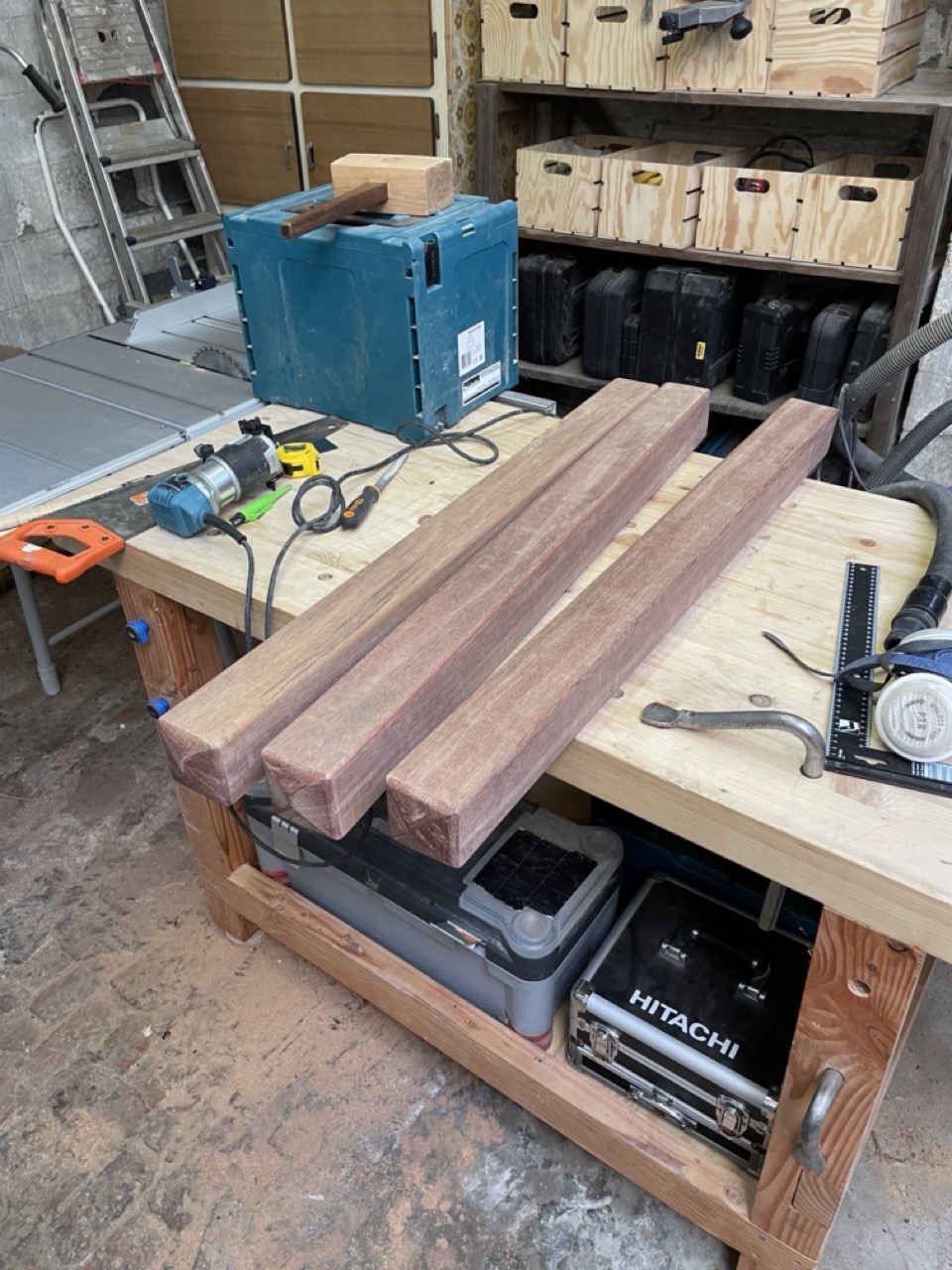

Cut to length, sanded and bevelled the top.

Installation

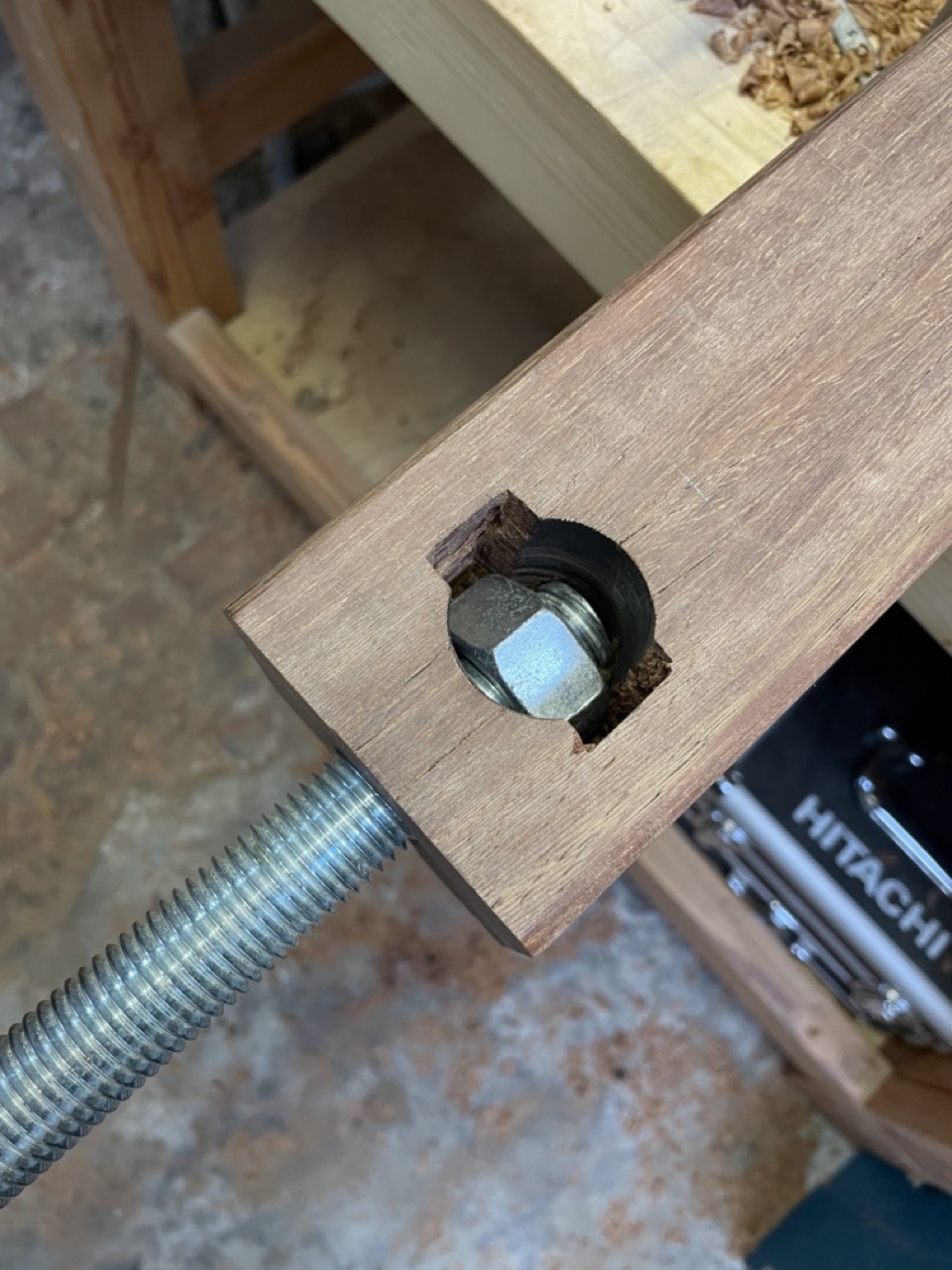

My original idea was to attach the posts like this but that didn't really work out as the thread was way too large and I couldn't get a wrench in to tighten the nut down.

Plywood Crate
I opted to simply glue them in place instead. Tec7 to the rescue!

Plywood Crate

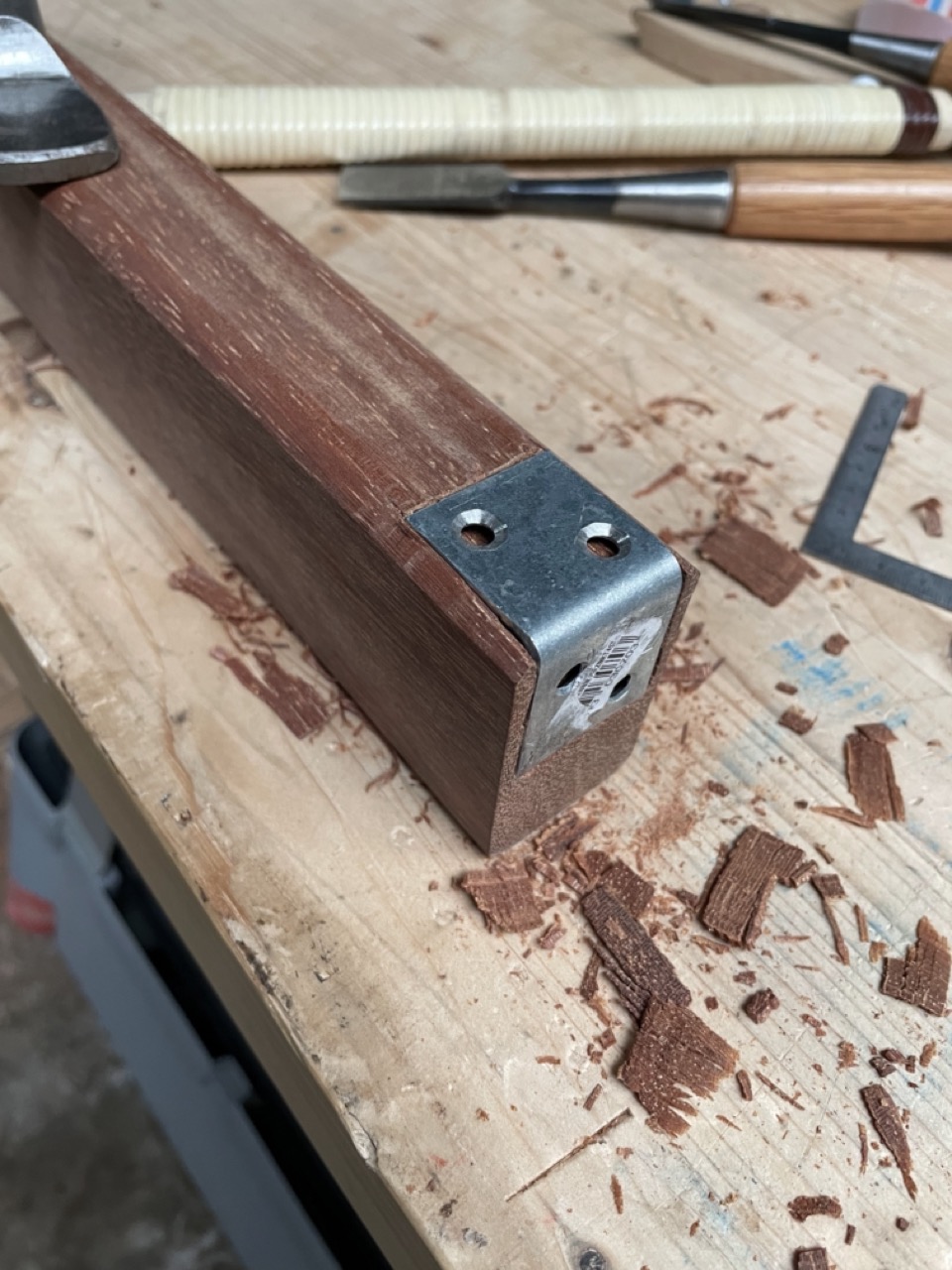

My original idea to toe screw the rails into the posts was quickly abandoned and I used these brackets instead.

Plywood Crate

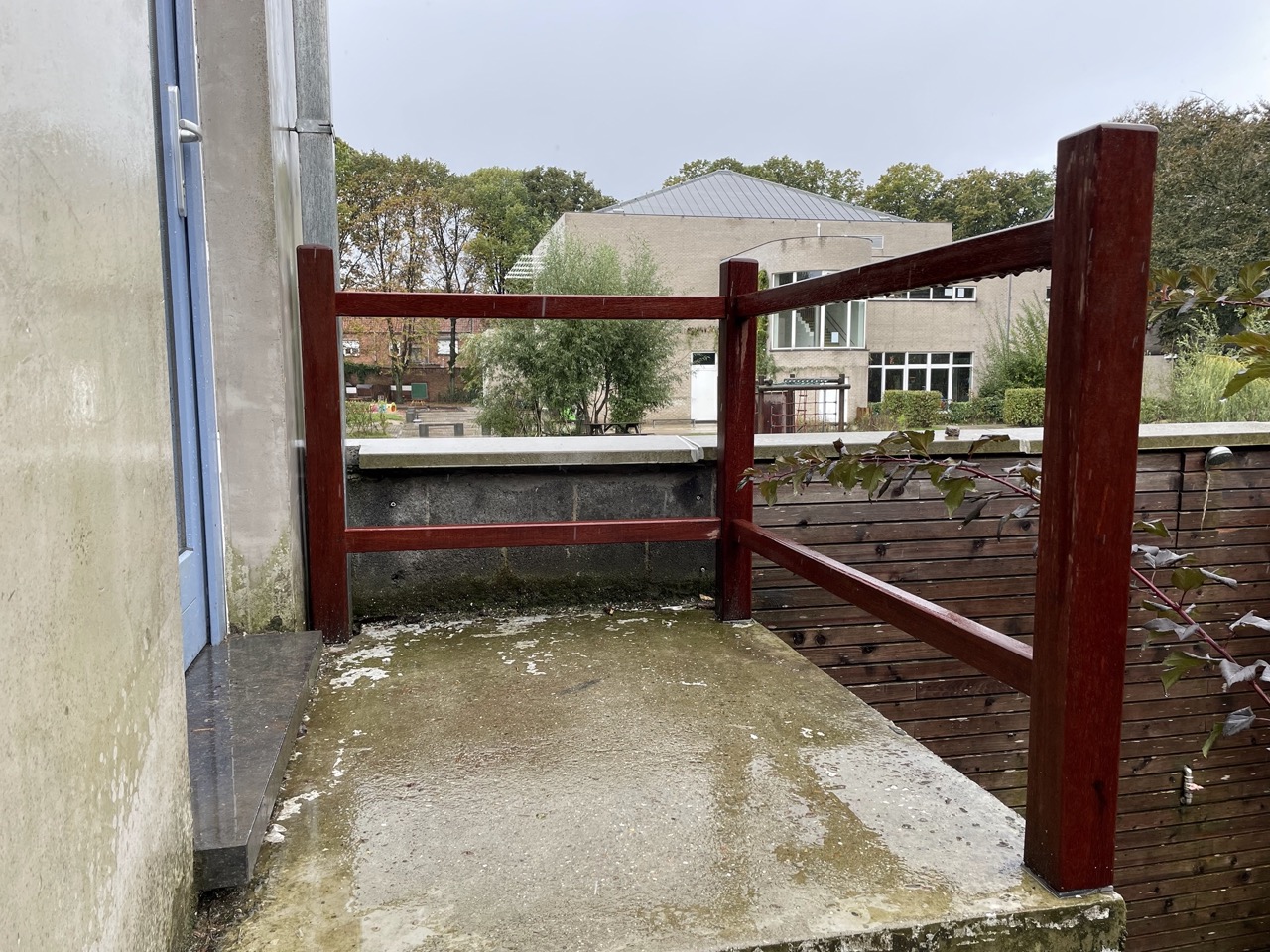

Should last quite a few years.

Lessons learned

  • Azobe is tough as nails.
  • Use metal drill bits to predrill and go very slowly.
  • Predrill with a big enough diameter as your screws will snap otherwise.
  • I can break about 4 drills and 5 screws a day.
